As technology advances, robotic arc welding is becoming an increasingly popular solution for manufacturers seeking efficiency, quality, and safety. The use of automation in welding processes not only enhances productivity but also reduces human error and potential risks, making it an ideal choice for modern fabrication needs.
What Is Arc Welding?
Arc welding is a process that uses a powerful electric arc to join metals. By creating an arc between an electrode and a metal, the system generates enough heat to melt the metal and fuse the pieces together. This heat is produced by the interaction between a negatively charged cathode and a positively charged anode. The electrode, which can be a specially prepared rod or wire, not only conducts the current but also supplies filler metal to the joint, facilitating the welding process.
The intense heat—reaching temperatures of approximately 6,500°F at the tip of the electrode—melts both the base metal and the electrode. This creates molten droplets that are transferred to the joint, forming a solid bond as the molten metal cools and solidifies. In processes like carbon or TIG welding, separate filler rods are used to supply the necessary material for the joint.
The Role of Power in Arc Welding
To initiate the arc, a power supply is needed to provide an initial voltage. This voltage either creates a discharge or is achieved by touching the electrode to the workpiece and pulling it away as the area heats up. Welding can be done using direct current (DC) or alternating current (AC), with the choice depending on the type of electrode, the arc atmosphere, and the material being welded. The power source is connected to the workpiece through a work cable, which is essential for completing the circuit.
Shielding in Arc Welding
Arc shielding is crucial in the welding process as it prevents the molten metal from reacting with atmospheric elements. By covering the weld area with a shield of gas, this step reduces the risk of contamination and ensures stronger, cleaner welds. Shielding gases also play a role in minimizing the amount of post-weld cleanup needed.
The Rise of Robotic Arc Welding

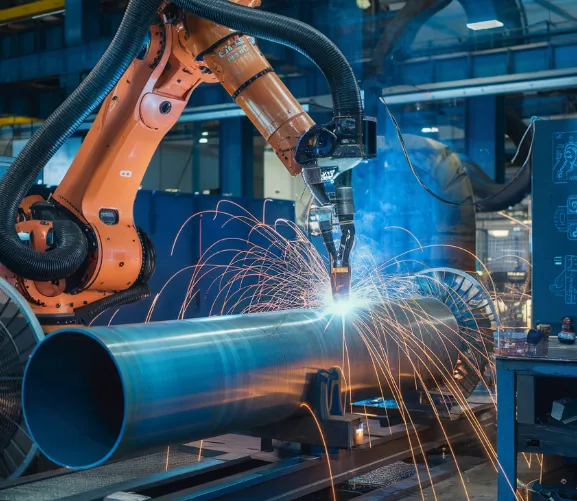

Since the 1980s, robotic automation in welding has seen remarkable advancements. Robotic welding systems, such as those with 6-axis capabilities, can replicate the movement of a human arm with precision, allowing the torch to reach the exact spot where it is needed. These robots can operate continuously without breaks, making them ideal for high-demand production environments.
Industries of all sizes use welding as a primary method for fabrication and repair, and robotic systems are being employed to handle a variety of welding techniques, including MIG, TIG, and laser welding. As the demand for automation in welding grows, the market for welding robots is expanding rapidly. By 2028, the automated welding industry alone is expected to be valued at $9.8 billion.
Advantages of Robotic Welding
1. Speed
One of the most significant advantages of robotic welding is its speed. Robots can work non-stop, significantly increasing arc-on time and output. The reduction in manual handling and the ability to operate 24/7 means that companies can drastically improve their throughput and productivity.
2. Accuracy
Robotic welding systems are designed for precision. With the ability to follow predetermined paths with incredible accuracy, robots reduce the chances of error, helping to minimize waste and save time.
3. Consistency
Robots deliver consistent results with each pass, producing uniform welds that meet high-quality standards every time. This reliability is crucial for maintaining product quality.
4. Safety
Welding is a hazardous task, with the risk of exposure to extreme heat, sparks, and fumes. By using robots for welding, companies can protect workers from these dangers, reducing the risk of workplace injuries and workers’ compensation claims.
5. Cost Efficiency
While manual welding requires skilled labor and significant time investment, robotic welding reduces labor costs, cuts down on energy consumption, and minimizes material waste. With fewer accidents and reduced insurance costs, robotic welding can make businesses more competitive in the global market.
6. Quality
Robots provide a high level of repeatability, with the ability to maintain precise angles, speeds, and distances during each weld. This results in high-quality welds with minimal defects, reducing the need for rework and improving overall efficiency.
7. Labor Challenges
While manual welding will always be necessary to some extent, it comes with challenges such as the need for constant training and the high turnover rates in the industry. Robotic automation offers a more stable and dependable workforce for welding tasks, providing long-term benefits to companies.
8. Flexibility
Robotic systems are versatile and can handle various welding techniques, including MIG, TIG, SMAW, and more. This flexibility allows manufacturers to produce a wide range of products efficiently and with quick turnaround times.
9. Space Efficiency
Robots are more compact than manual welding setups, requiring less floor space while maintaining or increasing output. This makes them a great solution for companies looking to optimize their factory layout.
The Future of Robotic Welding
The growth of robotic welding is reshaping the manufacturing industry, offering businesses faster, safer, and more cost-effective solutions. With continued advancements in automation and artificial intelligence, the potential for robotic welding to transform production processes is limitless. As industries look to improve efficiency, reduce costs, and maintain high-quality standards, robotic arc welding will undoubtedly play a central role in the future of manufacturing.
